Name: 20w 12v 24v 48v Chassis Type AC DX Switching Power Supply - Switching Power Supplies
Brand: Switching Power Supplies
Price: 1.00 USD
Rating: 4.9 (1189 reviews)

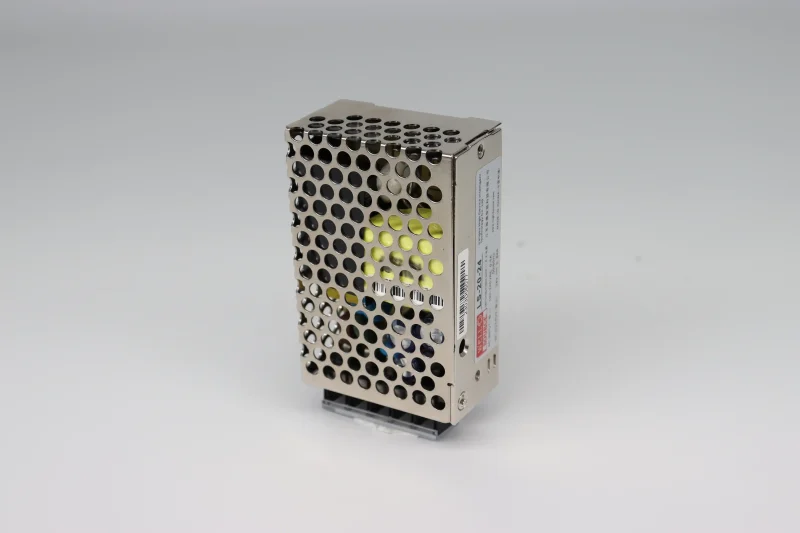

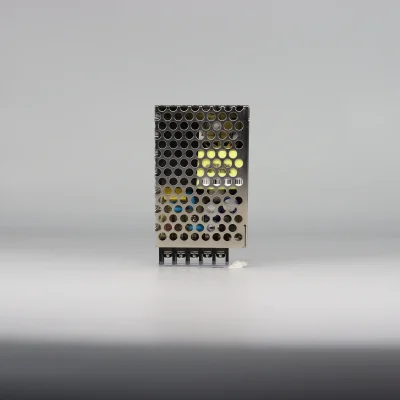

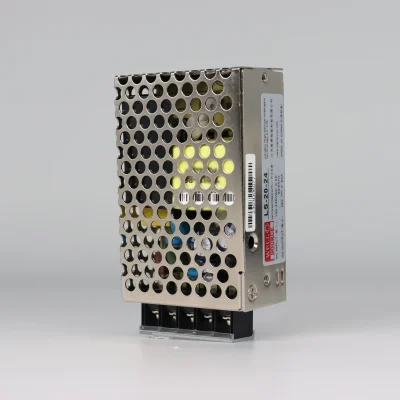

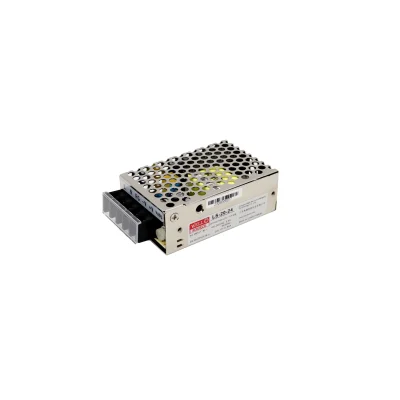

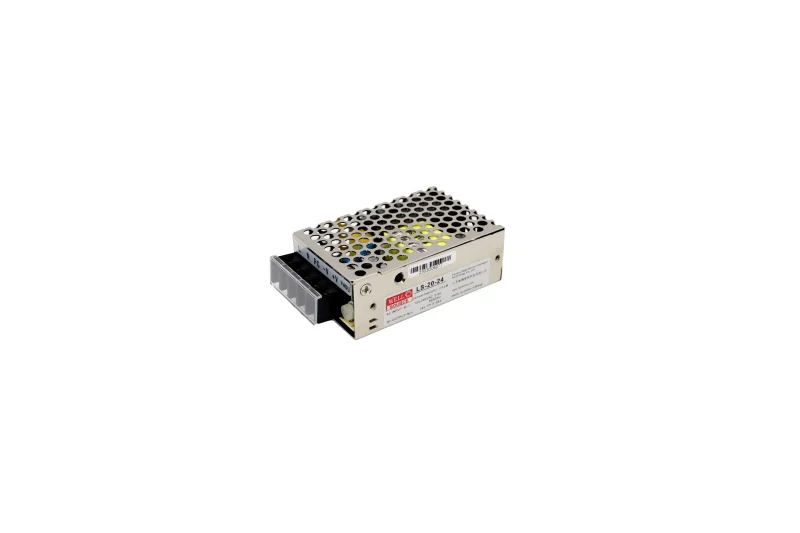

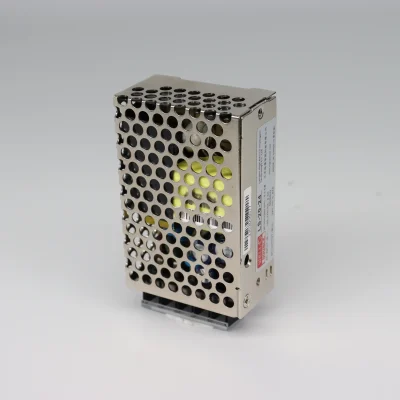

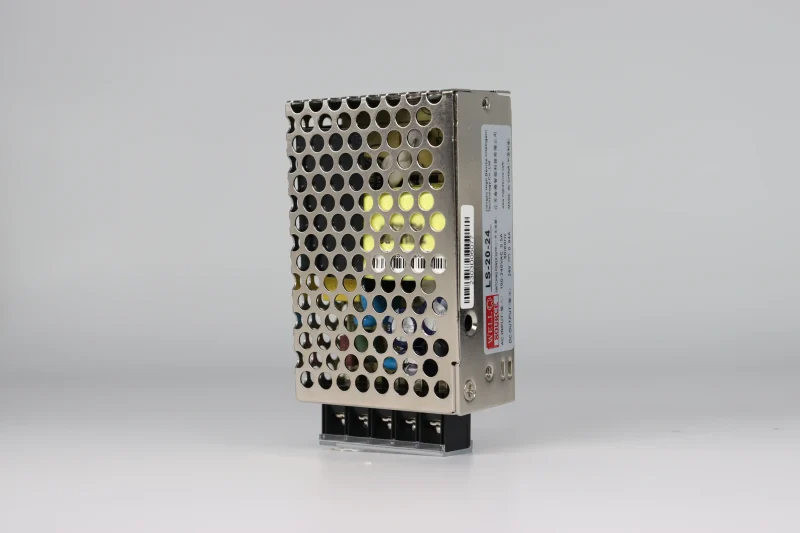

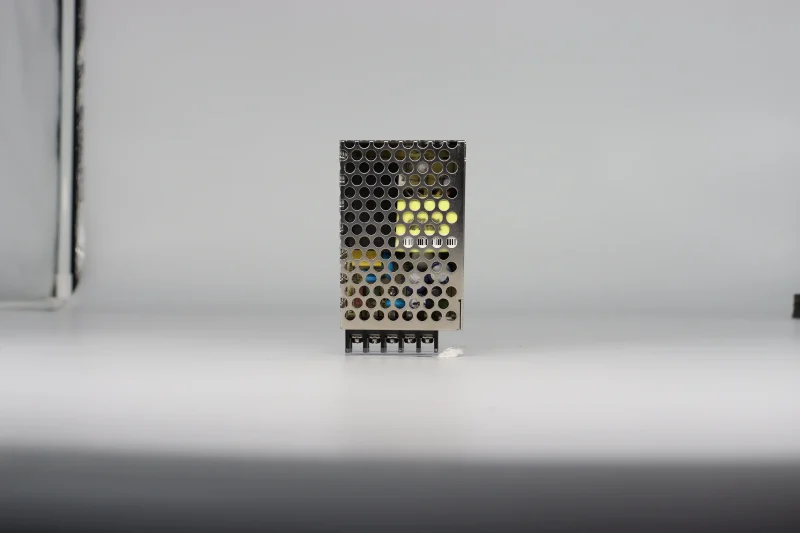

20w 12v 24v 48v Chassis Type AC DX Switching Power Supply

The LS-20 chassis type AC-DC switching power supply delivers 20W of power with an input range of 85- 264VAC or 120-370VDC. It offers output options of 5V, 12V, 15V, 24V, and 48V, with 3000V isolation. Compact, enclosed design ensures protection against environmental factors, making it suitable for a variety of applications such as industrial automation, telecommunications, medical, and security systems.

Key Features:

Input voltage range: 85- 264VAC or 120-370VDC
Output voltages: 5V, 12V, 15V, 24V, 48V
3000V isolation
Compact dimensions: 78mm x 51mm x 28mm
Enclosed design for enhanced durability
Applications: Industrial automation, telecommunications, consumer electronics, medical equipment, security systems

The LS-20 chassis type AC-DC switching power supply provides reliable and efficient power conversion for various applications. This compact and enclosed power supply unit is capable of delivering 20W of power with input voltages ranging from 85-264VAC or 120-370VDC. It is available with output voltages of 5V, 12V, 15V, 24V, and 48V, making it highly versatile for a wide range of electronic applications. The unit is designed with 3000V isolation to ensure safety and reliability.

AC - DC Enclosed Type 20W - 2000W

part number	power	Vin(dc)	Vout(dc)	isolation(vdc)	size(mm)	package	Datasheet
LS-20	20W	85~264vac*120~370vdc	5V/12V/15V/24V/48V	3000	785128mm	enclosed	Download LS-20
LS-35	35W	85~264vac*120~370vdc	5V/12V/15V/24V/48V	3000	785128mm	enclosed	Download LS-35
LS-50	50W	85~264vac	5V/12V/15V/24V/36V/48V	4000	1048230mm	enclosed	Download LS-50
LS-75	75W	meitu	5V/12V/15V/24V/36V/48V	4000	1048230mm	enclosed	Download LS-75
LS-100	100W	85~264vac*120~370vdc	5V/12V/15V/24V/36V/48V	4000	1349730mm	enclosed	Download LS-100
LS-150	150W	90～ 132vac/180～ 264vac* 240～ 370vdc (switch 230vac)	5V/7 .5V/12V/15V/24V/36V/48V	3000	1349730mm	enclosed	Download LS-150
LS-250	250W	90～ 132vac/180～ 264vac* 240～ 370vdc (switch 230vac)	5V/7 .5V/12V/15V/24V/36V/48V	3000	21511530mm	enclosed	Download LS-250
LS-350	350W	90～132vac/180～ 264vac*240～ 370vdc(switch 230vac)	5V/7 .5V/12V/15V/24V/36V/48V	3000	21511530mm	enclosed	Download LS-350
LS-450	450W	180～ 264vac*240～ 370vdc	5V/6 .5V/12V/15V/24V/36V/48V	3000	21511530mm	enclosed	Download LS-450
LS-600	600W	180～ 264vac*240～ 370vdc	24V/27V/48V	3000	23012740.5mm	enclosed	Download LS-600
LS-1000	1000W	180～ 264vac*240～ 370vdc	24V/36V/48V	3000	23012740.5mm	enclosed	Download LS-1000
NLS-150	150w	85-264vac*120-370vdc	5v/7.5/12v/15v/24v/27/36v/48v				Download NLS-150
NLS-200	200w	90-132vac/180-264vac*240-370vdc	5v/7.5/12v/15v/24v/36v/48v				Download NLS-200
NLS-350	350w	90-132vac/180-264vac*240-370vdc	5v/7.5/12v/15v/24v/36v/48v				Download NLS-350
LS-450C	450W	180～ 264vac*240～ 370vdc	18~24V/27~36V/36~48V	3000	21511530mm	enclosed	Download LS-450C
LS-600C	600W	180～ 264vac*240～ 370vdc	18~24V/27~36V/36~48V	3000	23012740.5mm	enclosed	Download LS-600C
LP-250	250W	90～264vac*127～370vdc	5V/7 .5V/12V/15V/24V/36V/48V	3750	21511530mm	enclosed	Download LP-250
LP-350	350W	90～264vac*127～370vdc	5V/7 .5V/12V/15V/24V/36V/48V	3000	21511530mm	enclosed	Download LP-350
LP-500	500W	90～264vac*127～370vdc	5V/7 .5V/12V/15V/24V/36V/48V	3000	23012740.5mm	enclosed	Download LP-500
LP-750	750W	90～264vac*127～370vdc	5V/7 .5V/12V/15V/24V/36V/48V	3000	23012740.5mm	enclosed	Download LP-750
LP-1000	1000W	90～264vac*127～370vdc	5V/7 .5V/12V/15V/24V/36V/48V	3000	24011541mm	enclosed	Download LP-1000
ULP-1000	1000W	90～264vac*127～370vdc	12V/15V/24V/36V/48V	3000	24011541mm	enclosed	Download ULP-1000

Industry Applications:

The LS-20 chassis type AC-DC power supply is perfect for various industries, including:

Industrial Automation: Powering control systems, sensors, and industrial machinery.
Telecommunications: Providing reliable power for communication devices and network infrastructure.
Consumer Electronics: Used in household appliances, lighting systems, and electronics.
Medical Equipment: Powers medical devices that require consistent and reliable performance.
Security Systems: Supports surveillance equipment and security devices that require stable power.

With its robust construction, high efficiency, and versatility, the LS-20 is suitable for many demanding environments where reliable power is crucial.

For more information, you can explore our AC-DC Enclosed Power Supplies range, including models from 20W to 2000W, to find the best solution for your specific needs.
