35W Encapsulated Power Supply Led Switching Mode Smps 24V Output

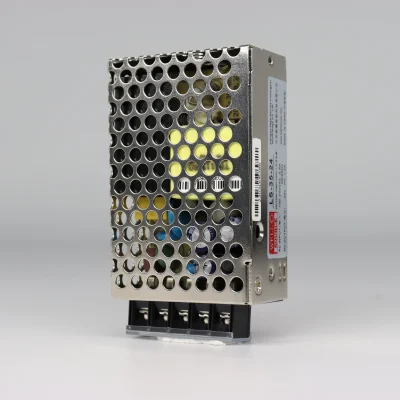

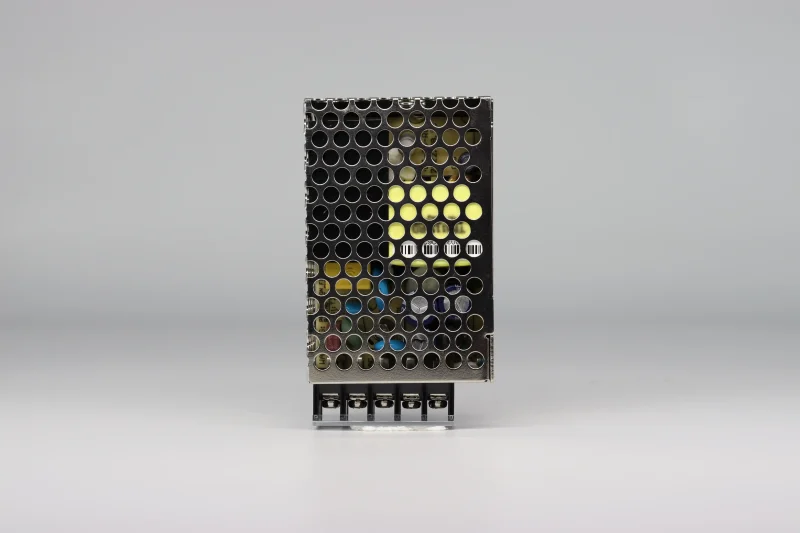

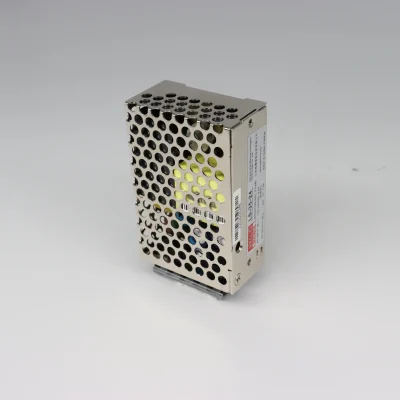

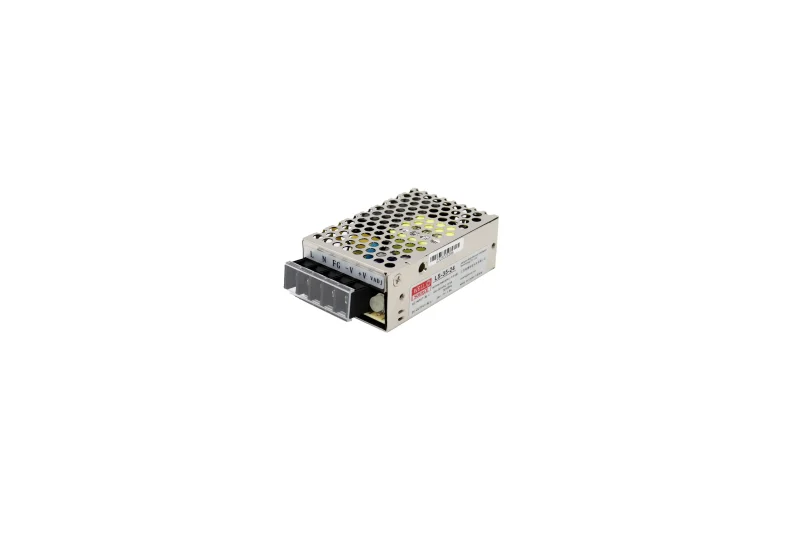

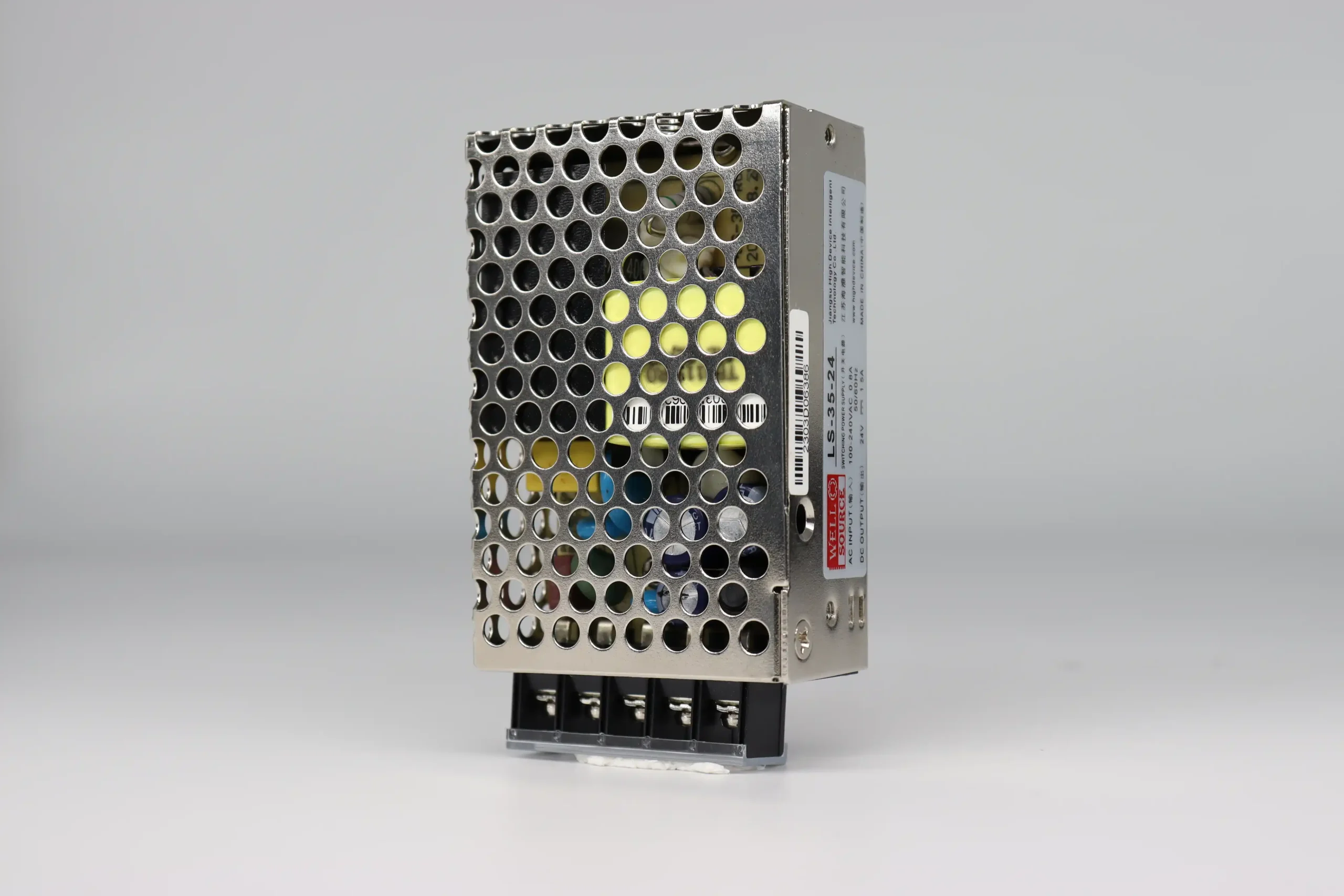

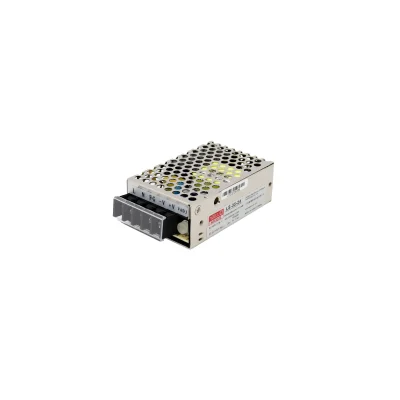

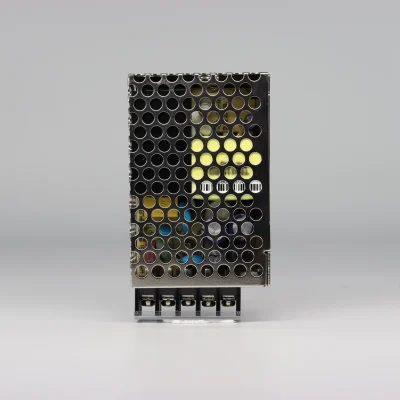

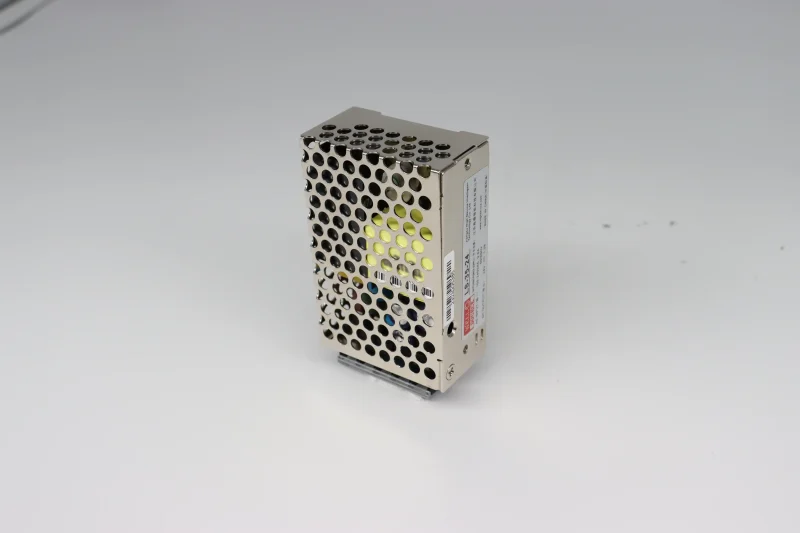

The LS-35 is a 35W encapsulated switching power supply offering multiple output voltages (5V/12V/15V/24V/48V) and 3000V isolation. Its compact design makes it perfect for industrial, medical, lighting, and security applications.

Key Product Features:

  • 35W power output
  • Input: 85-264VAC, 120-370VDC
  • Output: 5V/12V/15V/24V/48V
  • 3000V isolation for safe operation
  • Compact enclosed design (78x51x28mm)
  • Ideal for medical, industrial, and security applications
  • High reliability and stability
Categories: , , ,
Share your love

Please enable JavaScript in your browser to complete this form.
Multiple Choice

35W Encapsulated Power Supply – Led Switching Mode SMPS 24V Output

The LS-35 is a highly reliable 35W encapsulated switching power supply designed to provide efficient and stable power for various applications. With input voltage support ranging from 85-264VAC (120-370VDC) and output voltage options of 5V, 12V, 15V, 24V, and 48V, it offers versatile solutions for different power requirements. This compact enclosed unit, with dimensions of 78mm x 51mm x 28mm, ensures easy integration into a wide array of systems. It also features 3000V isolation, ensuring safe operation for sensitive electronics.

AC - DC Enclosed Type 20W - 2000W

part number power Vin(dc) Vout(dc) isolation(vdc) size(mm) package Datasheet
LS-20 20W 85~264vac*120~370vdc 5V/12V/15V/24V/48V 3000 78*51*28mm enclosed  Download LS-20
LS-35 35W 85~264vac*120~370vdc 5V/12V/15V/24V/48V 3000 78*51*28mm enclosed  Download LS-35
LS-50 50W 85~264vac 5V/12V/15V/24V/36V/48V 4000 104*82*30mm enclosed  Download LS-50
LS-75 75W meitu  5V/12V/15V/24V/36V/48V 4000 104*82*30mm enclosed  Download LS-75
LS-100 100W 85~264vac*120~370vdc 5V/12V/15V/24V/36V/48V 4000 134*97*30mm enclosed  Download LS-100
LS-150 150W 90～ 132vac/180～ 264vac* 240～ 370vdc (switch 230vac) 5V/7 .5V/12V/15V/24V/36V/48V 3000 134*97*30mm enclosed  Download LS-150
LS-250 250W 90～ 132vac/180～ 264vac* 240～ 370vdc (switch 230vac) 5V/7 .5V/12V/15V/24V/36V/48V 3000 215*115*30mm enclosed  Download LS-250
LS-350 350W 90～132vac/180～ 264vac*240～ 370vdc(switch 230vac) 5V/7 .5V/12V/15V/24V/36V/48V 3000 215*115*30mm enclosed  Download LS-350
LS-450 450W 180～ 264vac*240～ 370vdc 5V/6 .5V/12V/15V/24V/36V/48V 3000 215*115*30mm enclosed  Download LS-450
LS-600 600W 180～ 264vac*240～ 370vdc 24V/27V/48V 3000 230*127*40.5mm enclosed  Download LS-600
LS-1000 1000W 180～ 264vac*240～ 370vdc 24V/36V/48V 3000 230*127*40.5mm enclosed  Download LS-1000
NLS-150 150w 85-264vac*120-370vdc 5v/7.5/12v/15v/24v/27/36v/48v Download NLS-150
NLS-200 200w 90-132vac/180-264vac*240-370vdc 5v/7.5/12v/15v/24v/36v/48v Download NLS-200
NLS-350 350w 90-132vac/180-264vac*240-370vdc 5v/7.5/12v/15v/24v/36v/48v Download NLS-350
LS-450C 450W 180～ 264vac*240～ 370vdc 18~24V/27~36V/36~48V 3000 215*115*30mm enclosed  Download LS-450C
LS-600C 600W 180～ 264vac*240～ 370vdc 18~24V/27~36V/36~48V 3000 230*127*40.5mm enclosed  Download LS-600C
LP-250 250W 90～264vac*127～370vdc 5V/7 .5V/12V/15V/24V/36V/48V 3750 215*115*30mm enclosed  Download LP-250
LP-350 350W 90～264vac*127～370vdc 5V/7 .5V/12V/15V/24V/36V/48V 3000 215*115*30mm enclosed  Download LP-350
LP-500 500W 90～264vac*127～370vdc 5V/7 .5V/12V/15V/24V/36V/48V 3000 230*127*40.5mm enclosed  Download LP-500
LP-750 750W 90～264vac*127～370vdc 5V/7 .5V/12V/15V/24V/36V/48V 3000 230*127*40.5mm enclosed  Download LP-750
LP-1000 1000W 90～264vac*127～370vdc 5V/7 .5V/12V/15V/24V/36V/48V 3000 240*115*41mm enclosed  Download LP-1000
ULP-1000 1000W 90～264vac*127～370vdc 12V/15V/24V/36V/48V 3000 240*115*41mm enclosed  Download ULP-1000

The LS-35 is an excellent choice for industries where compact, reliable, and efficient power supplies are needed. Its encapsulated design offers protection against environmental factors, making it ideal for use in harsh conditions. This power supply is perfect for applications in industrial automation, telecommunications, home electronics, medical devices, lighting systems, security equipment, and more. Whether used in power-sensitive environments such as patient care equipment or in demanding industrial systems, the LS-35 ensures continuous, stable performance.

35W Encapsulated Power Supply Led Switching Mode Smps 24V Output (2)

Additionally, with its high isolation voltage, the LS-35 meets safety standards, offering a reliable and secure power solution. The LS-35 encapsulated power supply helps maintain operational efficiency in industries where system reliability and uptime are crucial, including automation, communication, home electronics, medical, lighting, and security sectors.
