Name: 500w High Efficiency 48v Smps 24 Volt Switching Power Supply - Switching Power Supplies
Brand: Switching Power Supplies
Price: 1.00 USD
Rating: 4.9 (1189 reviews)

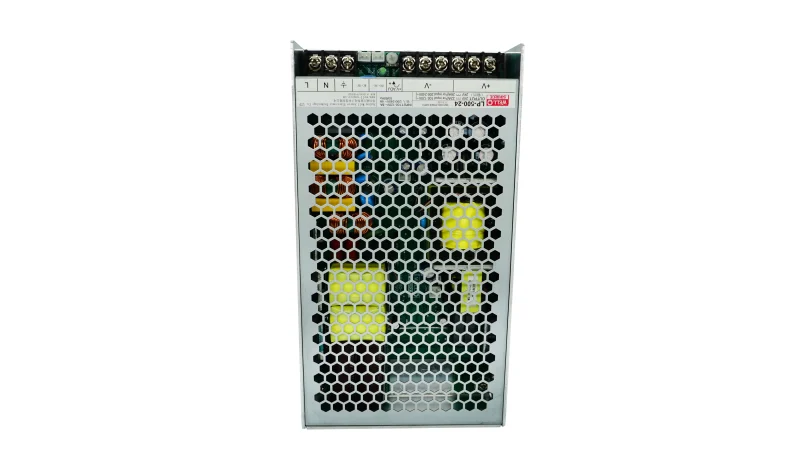

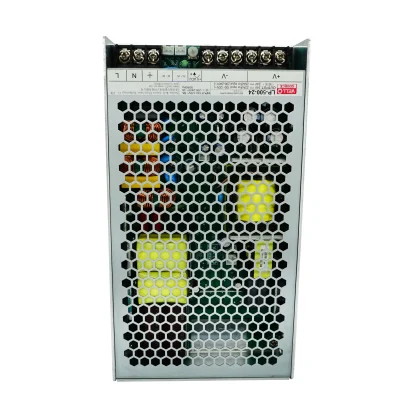

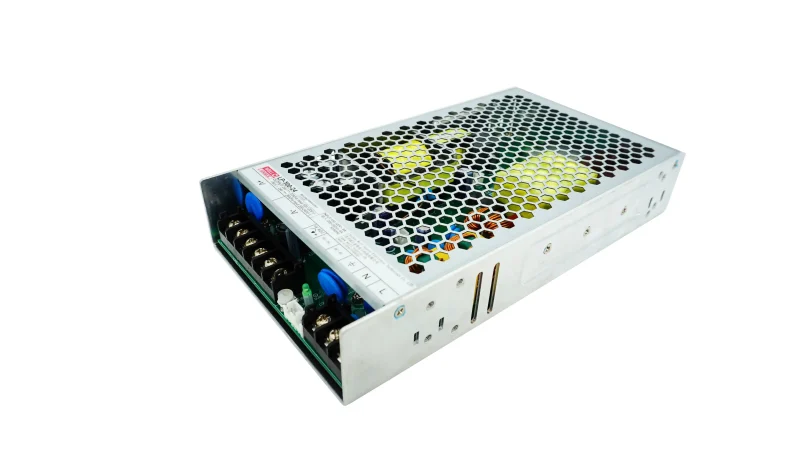

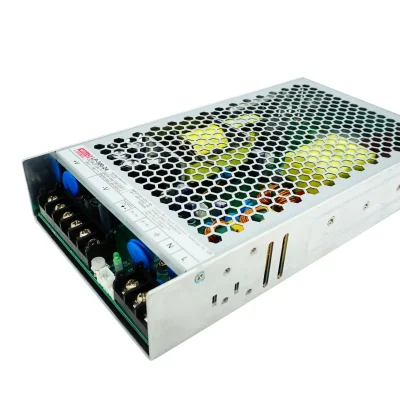

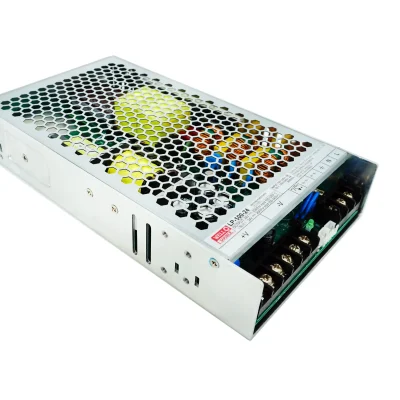

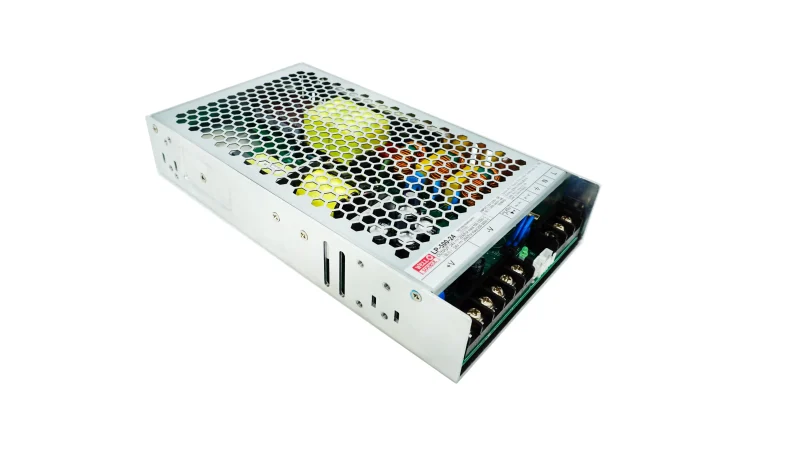

500w High Efficiency 48v Smps 24 Volt Switching Power Supply

The LP-500 500W High Efficiency SMPS Power Supply provides stable output options from 5V to 48V, designed for a range of industrial, medical, and commercial applications. It features a compact, enclosed design with 3000V isolation, ensuring safety and high performance.

Product Features:

Output Voltage Options: 5V, 7.5V, 12V, 15V, 24V, 36V, 48V
500W Power Capacity
Wide Input Range: 90-264V AC/127-370V DC
3000V Isolation for Safety
Compact Enclosed Design
High Efficiency for Low Energy Loss
Industry Certifications: ISO, CE, UL

500W High Efficiency 48V SMPS 24 Volt Switching Power Supply – Reliable Power for Diverse Applications

Our 500W High Efficiency 48V SMPS (Switch Mode Power Supply) is designed to deliver reliable and consistent power for a wide range of industrial, medical, and electronic applications. Offering multiple output options such as 5V, 7.5V, 12V, 15V, 24V, 36V, and 48V, this power supply is engineered to meet the demands of high-power applications while maintaining low energy consumption and high efficiency.

AC - DC Enclosed Type 20W - 2000W

part number	power	Vin(dc)	Vout(dc)	isolation(vdc)	size(mm)	package	Datasheet
LS-20	20W	85~264vac*120~370vdc	5V/12V/15V/24V/48V	3000	785128mm	enclosed	Download LS-20
LS-35	35W	85~264vac*120~370vdc	5V/12V/15V/24V/48V	3000	785128mm	enclosed	Download LS-35
LS-50	50W	85~264vac	5V/12V/15V/24V/36V/48V	4000	1048230mm	enclosed	Download LS-50
LS-75	75W	meitu	5V/12V/15V/24V/36V/48V	4000	1048230mm	enclosed	Download LS-75
LS-100	100W	85~264vac*120~370vdc	5V/12V/15V/24V/36V/48V	4000	1349730mm	enclosed	Download LS-100
LS-150	150W	90～ 132vac/180～ 264vac* 240～ 370vdc (switch 230vac)	5V/7 .5V/12V/15V/24V/36V/48V	3000	1349730mm	enclosed	Download LS-150
LS-250	250W	90～ 132vac/180～ 264vac* 240～ 370vdc (switch 230vac)	5V/7 .5V/12V/15V/24V/36V/48V	3000	21511530mm	enclosed	Download LS-250
LS-350	350W	90～132vac/180～ 264vac*240～ 370vdc(switch 230vac)	5V/7 .5V/12V/15V/24V/36V/48V	3000	21511530mm	enclosed	Download LS-350
LS-450	450W	180～ 264vac*240～ 370vdc	5V/6 .5V/12V/15V/24V/36V/48V	3000	21511530mm	enclosed	Download LS-450
LS-600	600W	180～ 264vac*240～ 370vdc	24V/27V/48V	3000	23012740.5mm	enclosed	Download LS-600
LS-1000	1000W	180～ 264vac*240～ 370vdc	24V/36V/48V	3000	23012740.5mm	enclosed	Download LS-1000
NLS-150	150w	85-264vac*120-370vdc	5v/7.5/12v/15v/24v/27/36v/48v				Download NLS-150
NLS-200	200w	90-132vac/180-264vac*240-370vdc	5v/7.5/12v/15v/24v/36v/48v				Download NLS-200
NLS-350	350w	90-132vac/180-264vac*240-370vdc	5v/7.5/12v/15v/24v/36v/48v				Download NLS-350
LS-450C	450W	180～ 264vac*240～ 370vdc	18~24V/27~36V/36~48V	3000	21511530mm	enclosed	Download LS-450C
LS-600C	600W	180～ 264vac*240～ 370vdc	18~24V/27~36V/36~48V	3000	23012740.5mm	enclosed	Download LS-600C
LP-250	250W	90～264vac*127～370vdc	5V/7 .5V/12V/15V/24V/36V/48V	3750	21511530mm	enclosed	Download LP-250
LP-350	350W	90～264vac*127～370vdc	5V/7 .5V/12V/15V/24V/36V/48V	3000	21511530mm	enclosed	Download LP-350
LP-500	500W	90～264vac*127～370vdc	5V/7 .5V/12V/15V/24V/36V/48V	3000	23012740.5mm	enclosed	Download LP-500
LP-750	750W	90～264vac*127～370vdc	5V/7 .5V/12V/15V/24V/36V/48V	3000	23012740.5mm	enclosed	Download LP-750
LP-1000	1000W	90～264vac*127～370vdc	5V/7 .5V/12V/15V/24V/36V/48V	3000	24011541mm	enclosed	Download LP-1000
ULP-1000	1000W	90～264vac*127～370vdc	12V/15V/24V/36V/48V	3000	24011541mm	enclosed	Download ULP-1000

With a wide input voltage range of 90-264V AC (127-370V DC), this power supply ensures seamless operation in various environments, making it ideal for industries such as industrial automation, communications, healthcare, lighting, signage, security, military, aerospace, and transportation. The LP-500 power supply is enclosed for added protection and features a robust isolation of 3000V DC, ensuring safety and reliability in critical applications.

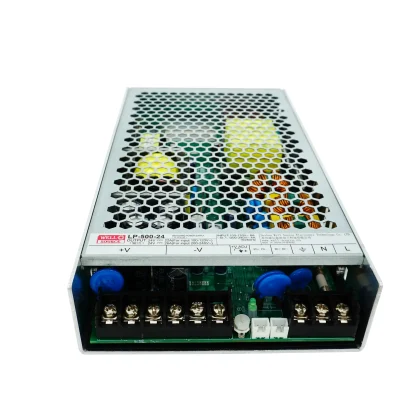

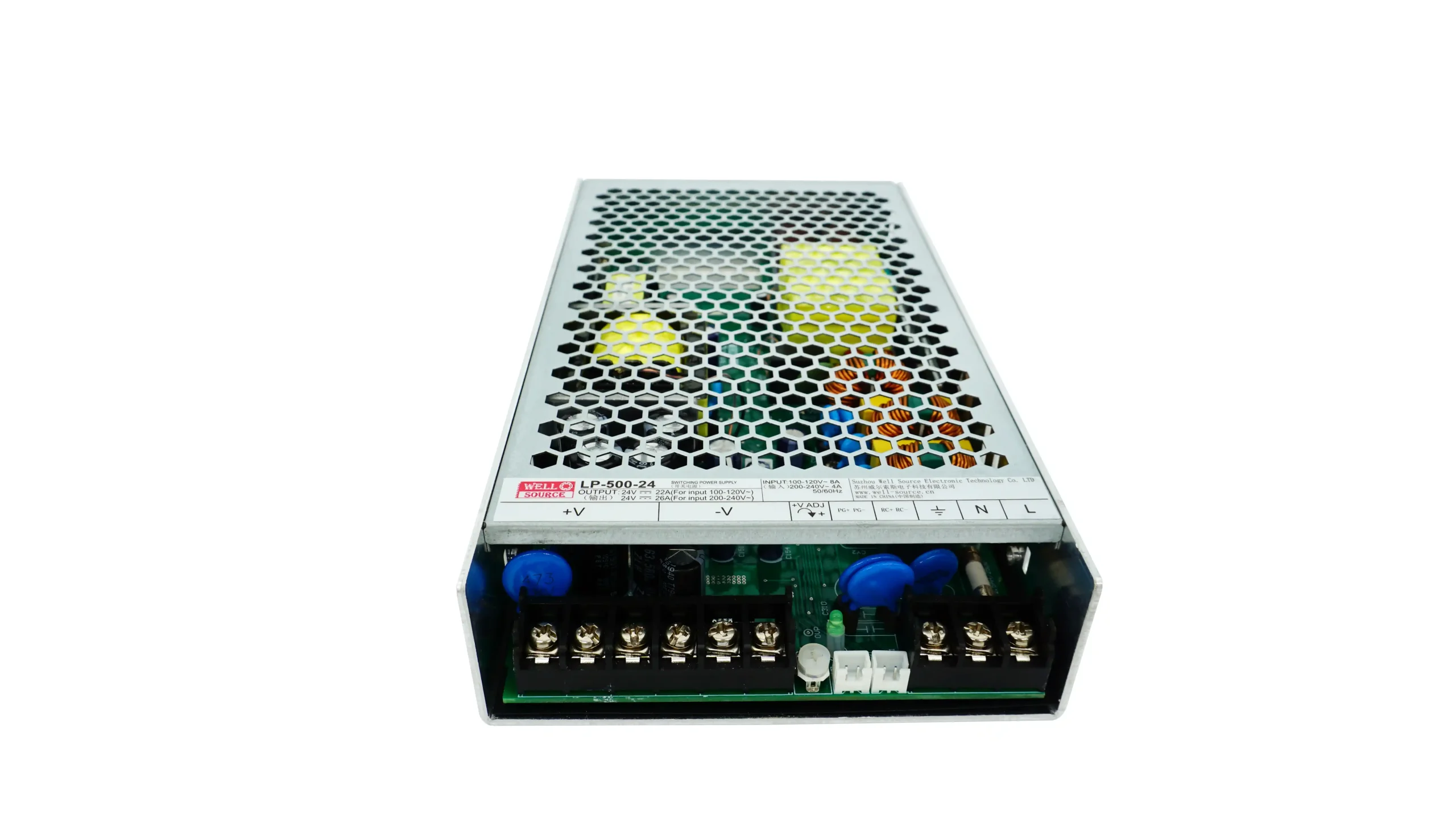

500w High Efficiency 48v Smps 24 Volt Switching Power Supply (5)

Whether you’re in need of a dependable power supply for complex machinery, medical devices, or home electronics, our 500W High Efficiency SMPS Power Supply delivers the performance and durability required for mission-critical applications.
