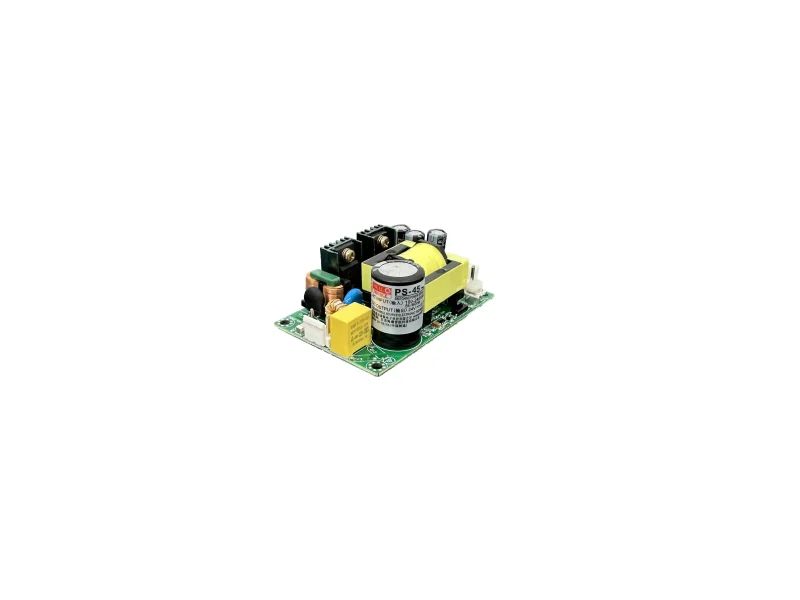

45w PCB Open Frame smps 12 VDC Power Supply Module

PS-45 45W open-frame SMPS provides stable and efficient power conversion with output voltages of 5V, 12V, 15V, 24V, and 48V. Featuring 3000V isolation, this power supply is perfect for industrial, medical, and telecom applications. Its compact design allows for easy integration into various systems, providing energy-efficient and reliable power for a wide range of devices.

Product Features:

Multiple output voltages: 5V, 12V, 15V, 24V, 48V DC
Input voltage: 85-264V AC (127-370V DC)
High isolation: 3000V DC
Compact open-frame design (76.2mm x 50.8mm x 24mm)
Energy-efficient and reliable
Suitable for industrial, medical, telecom, and security applications
Easy integration into space-constrained systems
Ideal for sensors, communication equipment, and medical devices

The PS-45 is a versatile and high-performance 45W open-frame SMPS (Switched Mode Power Supply) designed for efficient power conversion in various applications. With an input voltage range of 85-264V AC (127-370V DC), it offers multiple output voltages of 5V, 12V, 15V, 24V, and 48V DC, making it a flexible solution for a wide range of power needs. The PS-45 provides high isolation of 3000V DC, ensuring safe and reliable operation even in critical applications.

AC - DC Open Frame Type 15W - 420W

part number	power	Vin(dc)	Vout(dc)	isolation(vdc)	size(mm)	package	Datasheet
PS-15	15w	85-264vac*127-370vdc	3.3V/5V/7.5V/12V/15V/24V/36V/48V	3000	63.545.724mm	open frame	Download PS-15
PS-25	25w	85-264vac*127-370vdc	5V/12V/15V/24V/48V	3000	76.250.824mm	open frame	Download PS-25
PS-35	35w	85-264vac*120-370vdc	5V/12V/24V/48V	3000	76.250.824mm	open frame	Download PS-35
PS-45	45w	85-264vac*120-370vdc	5V/12V/15V/24V/48V	3000	76.250.824mm	open frame	Download PS-45
PS-65	65w	85-264vac*120-370vdc	12V/15V/24V/27V/36V/48V	3000	101.650.829mm	open frame	Download PS-65
PS-65E		90-264vac*127-370vdc	5V/7.5V/12V/15V/24V/36V/48V	3000	101.650.829mm	open frame	Download PS-65E
PS-150	150w	85-264vac	3 .3V/5V/12V/15V/24V	3000	63.545.715mm	open frame	Download PS-150
PFS-150	150w	85~264vac	5V/12V/15V/24V/48V	4000	76.250.830mm	open frame	Download PFS-150
PFS-220	220w	80~264vac	5V/12V/15V/24V/48V	4000	76.250.830mm	open frame	Download PFS-220
PFS-220-24AOI	220w	80-264vac	24v	4000	12776.229mm	open frame	Download PFS-220-24AOI
HPS-15	15w	85-264vac*100-370vdc	12V/15V/24V/27V/36V/48V	4000	101.650.829mm	open frame	Download HPS-15
HPS-35	35w	85-264vac*100-370vdc	12V/15V/24V/27V/36V/48V	4000	101.650.829mm	open frame	Download HPS-35
HPS-45	45w	85-264vac*100-370vdc	12V/15V/24V/27V/36V/48V	4000	101.650.829mm	open frame	Download HPS-45
HPS-65	65w	85-264vac*100-370vdc	12V/15V/24V/27V/36V/48V	4000	12776.235mm	open frame	Download HPS-65
HPS-120	120w	85-264vac*100-370vdc	12V/15V/24V/27V/36V/48V	4000	12776.235mm	open frame	Download HPS-120

The compact design (76.2mm x 50.8mm x 24mm) of this open-frame power supply module makes it easy to integrate into different systems. It’s perfect for applications in industrial automation, telecommunications, medical equipment, consumer electronics, and security systems. With its high efficiency and small footprint, the PS-45 is ideal for space-constrained environments where energy savings and reliable performance are crucial.

Industries like industrial control, medical devices, security systems, home electronics, and communications will benefit from the PS-45’s robust design and reliable power output. Whether you need a stable 12V DC for communication equipment or 5V for sensors, this power supply provides the necessary performance for critical applications.

Explore more about AC-DC Open Frame Power Supplies to discover additional power supply options tailored to your requirements.
