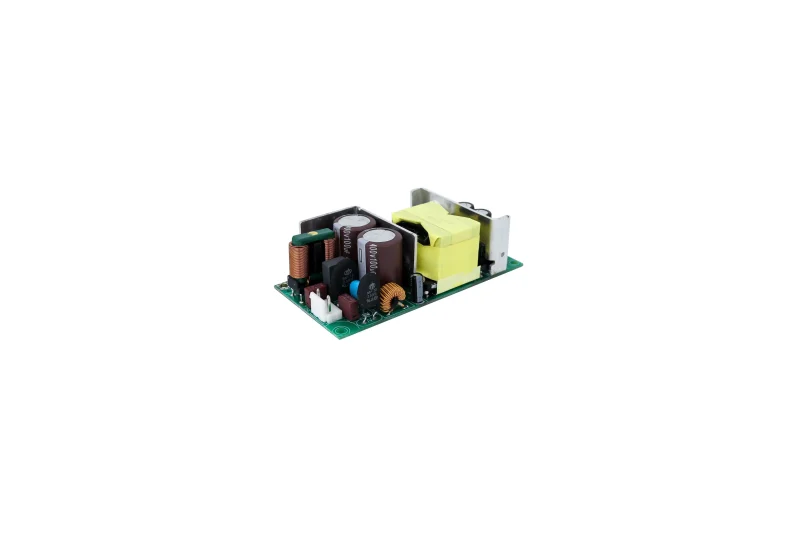

Reliable PCB Type 12V 10A Open Frame Switching 120W Power Supply

HPS-120 is a 120W open-frame switching power supply with 4000V isolation and a wide input range of 85-264V AC or 100-370V DC. With multiple output voltages (12V, 15V, 24V, 27V, 36V, 48V) and a 10A output at 12V, it is perfect for industrial, medical, security, and lighting applications. Its compact design makes it easy to integrate into various systems while ensuring high efficiency and reliability.

Key Features:

120W output power for efficient operation
Wide input voltage range: 85-264V AC / 100-370V DC
Multiple output voltages available: 12V, 15V, 24V, 27V, 36V, 48V
10A output at 12V for higher power needs
4000V DC isolation for safe and reliable operation
Open-frame design: 127mm x 76.2mm x 35mm for easy integration
Certified to CE, UL, and ISO9001 standards

The HPS-120 is a high-performance 120W open-frame switching power supply designed to meet the demanding requirements of various applications. This power supply offers an input voltage range from 85-264V AC or 100-370V DC, making it suitable for use in global markets. The versatile output voltages of 12V, 15V, 24V, 27V, 36V, and 48V make it a perfect fit for different system needs, with a 10A output at 12V.

AC - DC Open Frame Type 15W - 420W

part number	power	Vin(dc)	Vout(dc)	isolation(vdc)	size(mm)	package	Datasheet
PS-15	15w	85-264vac*127-370vdc	3.3V/5V/7.5V/12V/15V/24V/36V/48V	3000	63.545.724mm	open frame	Download PS-15
PS-25	25w	85-264vac*127-370vdc	5V/12V/15V/24V/48V	3000	76.250.824mm	open frame	Download PS-25
PS-35	35w	85-264vac*120-370vdc	5V/12V/24V/48V	3000	76.250.824mm	open frame	Download PS-35
PS-45	45w	85-264vac*120-370vdc	5V/12V/15V/24V/48V	3000	76.250.824mm	open frame	Download PS-45
PS-65	65w	85-264vac*120-370vdc	12V/15V/24V/27V/36V/48V	3000	101.650.829mm	open frame	Download PS-65
PS-65E		90-264vac*127-370vdc	5V/7.5V/12V/15V/24V/36V/48V	3000	101.650.829mm	open frame	Download PS-65E
PS-150	150w	85-264vac	3 .3V/5V/12V/15V/24V	3000	63.545.715mm	open frame	Download PS-150
PFS-150	150w	85~264vac	5V/12V/15V/24V/48V	4000	76.250.830mm	open frame	Download PFS-150
PFS-220	220w	80~264vac	5V/12V/15V/24V/48V	4000	76.250.830mm	open frame	Download PFS-220
PFS-220-24AOI	220w	80-264vac	24v	4000	12776.229mm	open frame	Download PFS-220-24AOI
HPS-15	15w	85-264vac*100-370vdc	12V/15V/24V/27V/36V/48V	4000	101.650.829mm	open frame	Download HPS-15
HPS-35	35w	85-264vac*100-370vdc	12V/15V/24V/27V/36V/48V	4000	101.650.829mm	open frame	Download HPS-35
HPS-45	45w	85-264vac*100-370vdc	12V/15V/24V/27V/36V/48V	4000	101.650.829mm	open frame	Download HPS-45
HPS-65	65w	85-264vac*100-370vdc	12V/15V/24V/27V/36V/48V	4000	12776.235mm	open frame	Download HPS-65
HPS-120	120w	85-264vac*100-370vdc	12V/15V/24V/27V/36V/48V	4000	12776.235mm	open frame	Download HPS-120

The HPS-120 is built with 4000V DC isolation, ensuring enhanced safety and reliability, especially for sensitive applications. Its compact design, measuring 127mm x 76.2mm x 35mm, allows it to be easily integrated into systems with space constraints without sacrificing performance. The open-frame structure further contributes to easy mounting and installation, making it an ideal solution for industrial, medical, and communication systems.

This power supply is ideal for industries such as industrial automation, medical devices, security systems, and lighting applications. Its high efficiency and reliability make it perfect for powering devices in critical sectors like patient care equipment, imaging systems, surgical instruments, and home healthcare devices. It also performs well in communication equipment and LED lighting systems.

The HPS-120 is compliant with international safety standards, including CE, UL, and ISO9001 certifications, ensuring it is a reliable and safe choice for customers worldwide.
